Heavy lifting for all industries.
Made in Europe and USA.

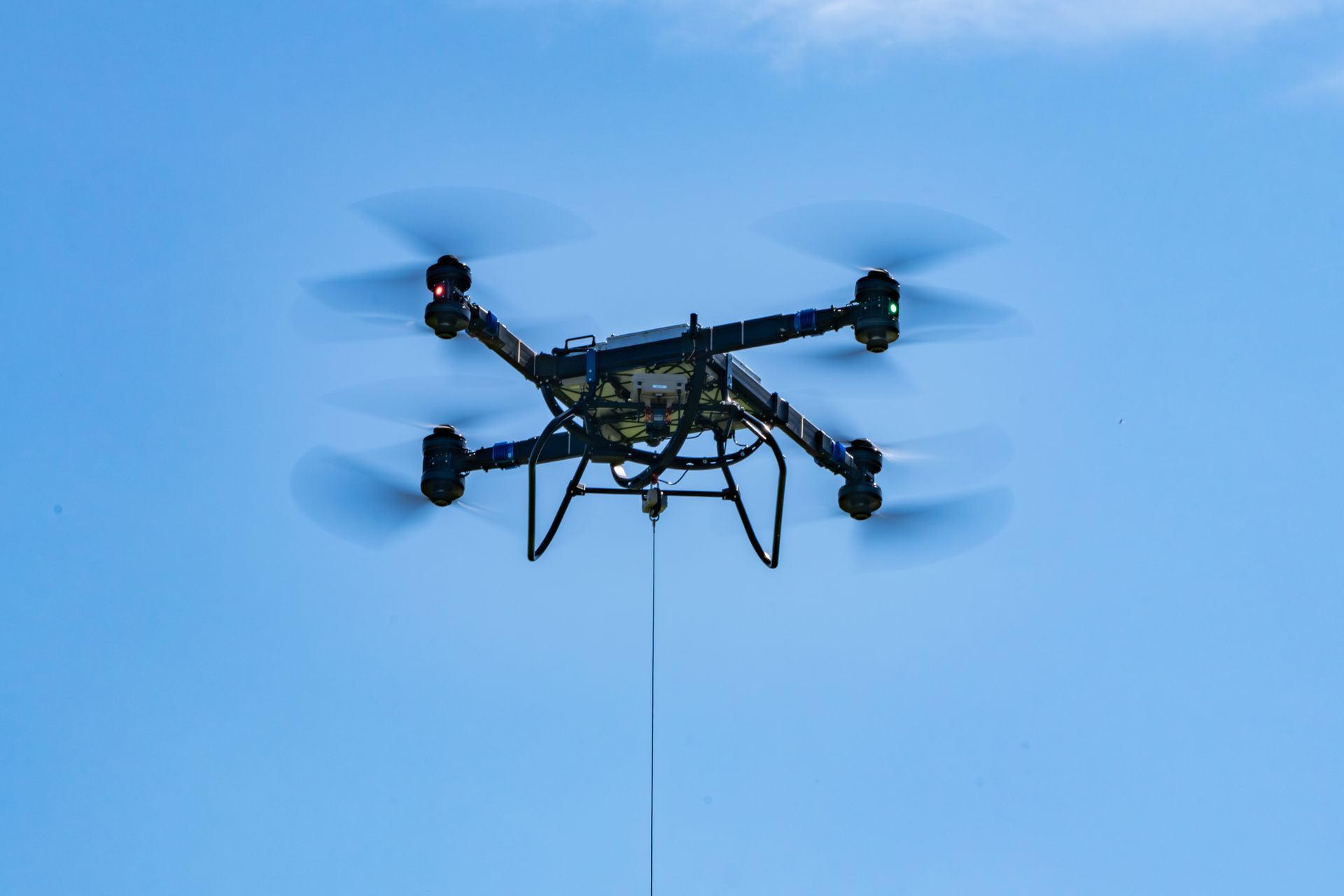

Our FB3 Cargo Drone is built to turn challenging transport operations into successful missions globally.
Discover our outstanding lifting capabilities for your industry.
Engineered as a complete operating platform.
Lift up to 100 kg
This exceptional strength allows you to carry a multitude of payloads of various shapes and dimensions giving you freedom to adapt to your specific operational requirements.
Compact on the ground
All these capabilities are combined in a compact design, weighing only 70kg. Disassembly is unnecessary during transportation; it’s ready to fly at a moment’s notice.
Mission-ready Ground Control Station
The GCS provides mission oversight through intuitive controls integrated into a compact suitcase for maximum portability and rapid deployment.
Swappable smart batteries
Their design enables rapid battery replacement, reducing downtime between operations. This efficient and sustainable solution also helps lower emissions, making it an environmentally responsible choice.
Technical Overview
Performance for demanding missions.
Maximum payload
100 kg
220 lbs
Operating temperature
−20 °C to +45 °C
14°F to 104°F
| Maximum payload 100 kg | Operating temperature −20 °C to +45 °C |
Maximum speed 30 m/s | Dimensions 1.6m × 1.6m × 0.7m |
Empty weight 70 kg | Li-Ion Batteries Pack of 4 |
Dimensions
1.6m × 1.6m × 0.7m5' 3" x 5' 3" x 2' 5"
Maximum speed
30 m/s
67 mph
Li-Ion Batteries
Pack of 4
Empty weight
70 kg
154 lbs
Payload
Estimated range
5 kg
25 km
25 kg
20 km
75 kg
9 km
100 kg
7 kmPayload versus mission distance
Indicative values excluding operational contingencies, wind and site-specific reserves.
50 kg
15 km 5 kg | 25 kg | 50 kg | 75 kg | 100 kg |
25 km | 20 km | 15 km | 9 km | 7 km |
11 lbs | 55 lbs | 110 lbs | 165 lbs | 220 lbs |
15,5 mph | 12,4 mph | 9,3 mph | 5,6 mph | 4,3 mph |
Payload
Estimated range
11 lbs
15,5 mph
55 lbs
12,4 mph
110 lbs
9,3 mph
165 lbs
5,6 mph
220 lbs
4,3 mphThese are the FB3’s performance specifications in U.S. units.
Designed around controlled,
observable operations.
FB3 combines independent safety functions, redundant propulsion and situational-awareness systems to support complex operational approvals and disciplined mission execution.
Flight Termination System
The FTS system ensures precise control over your UAV, allowing you to maintain it within the Ground Risk Buffer
ADS-B Receiver
The ADS-B receiver provides real-time information on nearby aircraft, further enhancing safety by helping you avoid airspace conflicts.
Propulsion System Redundancy
In the event of motor controller, motor, battery, or short circuit failures, this system ensures that your drone can continue to operate safely
Optimized Signal Connectivity
The FB3 excels in transmitting critical flight control data and telemetry, allowing operability e in Beyond Visual Line of Sight scenarios.
Battery-Powered Propulsion
We proudly engineer these four robust batteries in-house, providing the essential power source for the eight propulsion units that drive the FB3.
Radar AGL Sensor
The Radar AGL sensor is invaluable for terrain-following flights, obstacle avoidance, and overall mission safety.
Build your FB3
Select the FB3 version that matches your operation, add the required equipment and training, and submit the configuration to FlyingBasket.
Choose your FB3 version
Every version is priced as a complete operating kit, including the FB3 aircraft, Ground Control Station, system documentation, one battery set and the package-specific charger.
Batteries and chargers
One battery set and one charger are included in the complete kit price. Essentials includes the standard charger; Standard and Pro BVLOS include the fast charger. Increase the quantities to add extra units.
Battery sets
One complete high-performance battery set of four batteries.
(included)
Standard charger
7 kW charger with 90 Vac–280 Vac input, single phase.
+1.900 € each
Fast charger
16 kW charger with 260–530 Vac input, three phase.
(included)
Equipment options
Add the equipment required for transport, load handling and persistent operations.
Training
Prepare pilots and maintenance personnel to operate and support the FB3 system.
Review and continue
The estimated total shows the complete configured kit. Ordering takes you to checkout for the package-specific deposit only; requesting a quotation does not require payment.
